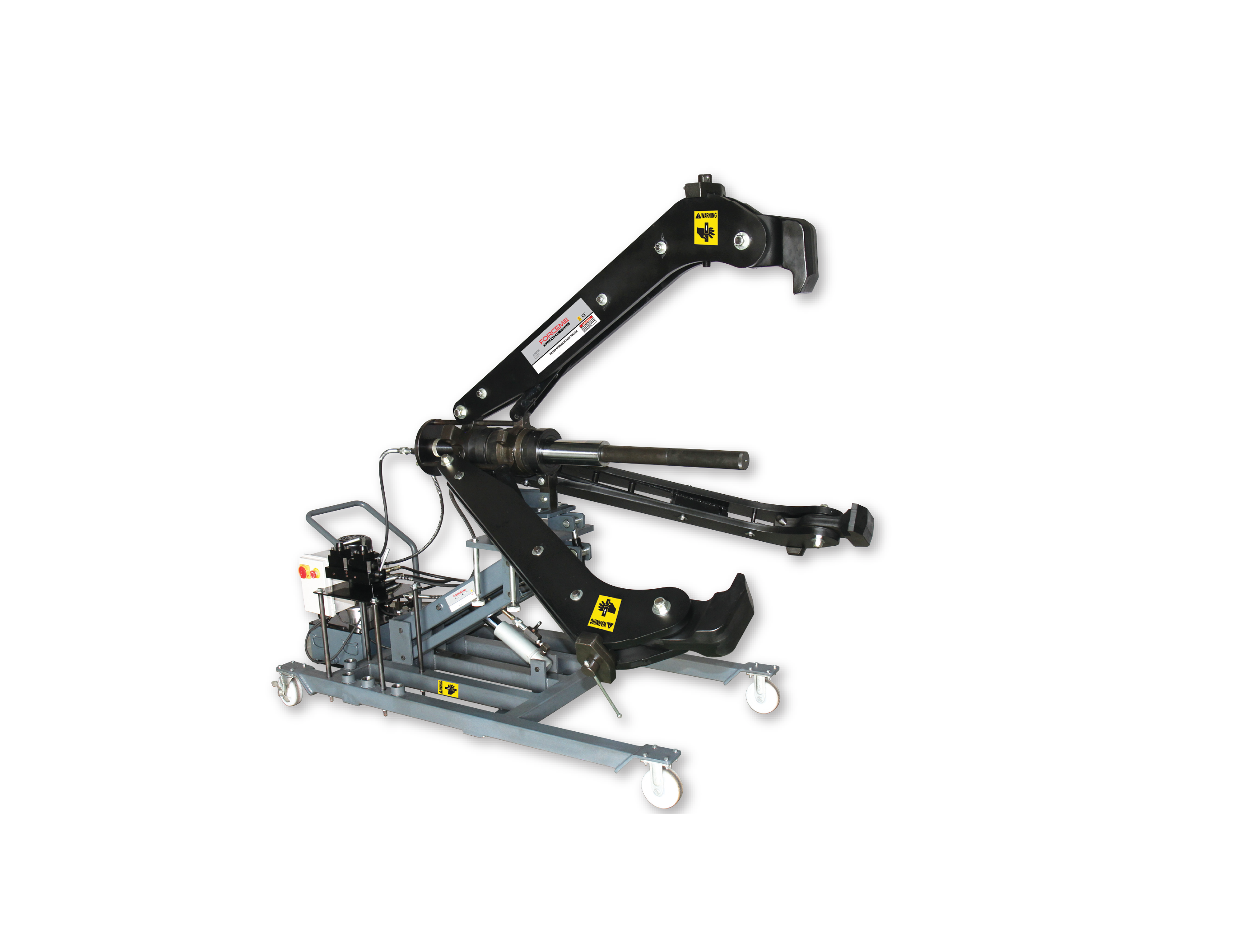

Movable Hydraulic Puller 2/3-jaws

FEATURES;

• Double acting hydraulic system for holding, opening and closing jaws for safe and secure grip on work object always.

• Self-centering design keeps puller jaws clamp work object evenly and automatically.

• Electric hydraulic pump advances and retracts the pushing cylinder only to prevent operating errors from happening.

• The easy jaw head adjusting system prevents puller jaws from sliding and spring off the work object being pulled always

• Puller can be adjusted with 5 degree up/down of puller center line for precisely positioning.

• The cart swivel castors provide movement of cart easily

• Electrical hand pump is two stage version; the low pressure stage provides the fast stroking to save time: the high pressure stage is controlled by remote switch.

• 100 ton cylinder is 2-stage, spring return type with a maximum working pressure of 10,000 psi.

• Five extension adapters are standard attachments for the need on extra stroke.

• Integrated control system for operating lift and push easily and efficiently by electric pump only.
