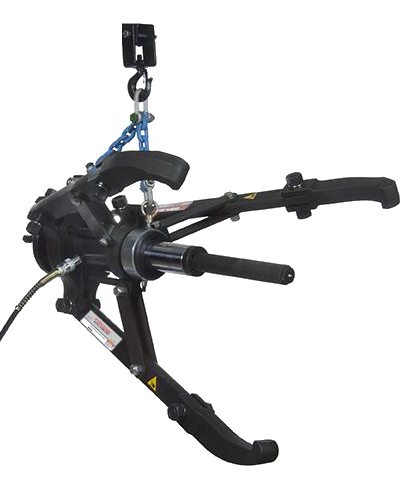

Movable Hydraulic Puller 2/3-jaws

MODEL: MHP5033

Screw mechanism for opening and closing the jaws for safe and secure grip on job.
The easy jaw operating system prevent puller jaws from sliding and/or springing off the work object always
Self-centering design keeps the arms slide inwards or outwards simultaneously.
Electric/Hand pump advances and retracts the pushing cylinder only to prevent operating errors from happening.
50 ton cylinder is single-acting, spring return type with a maximum working pressure of 10,000 psi.
Electric hydraulic pump is two stage version; the low pressure stage provides the fast stroking to save time; the high pressure stage is controlled by remote hand switch.
Puller can be Hanged on a workshop/overhead crane.
Hanging eye-bolt included and optional leveler can help to align the puller horizontally.
Two extensions are included for the needs on extra stroke.

Technical Specifications:

Model	Capacity Ton	Max. Reach mm	Spread mm		Stroke mm	Lenght mm	Package components				Weight Kgs	Extension Rod (pcs)
-	Max	Max	Min	Max	-	-	Puller	Pump	Hyd.accessories	Crane	-	E1876	E1875
MHP5033W	50	455	140	830	158	1035	MHP5033	NON	NON	NON	140	1 pcs	1 pcs
MHP5033E	50	455	140	830	158	1035	MHP5033	EP2400S	Hose PHS3310 Gauge M0039 Adapter E1745 Couplers CP332B	NON	175	1 pcs	1 pcs
MHP5033H	50	455	140	830	158	1035	MHP5033	EP2400S	Hose PHS3310 Gauge M0039 Adapter E1745 Couplers CP332B	Included Capacity 1000 kg	350	1 pcs	1 pcs
