Movable Hydraulic Push-Puller Angle

MODEL: MDTU100TE

Pulling Capacity 100 tons

Pushing Capacity 68 tons

FEATURES:

  • Dismantle or install the tapered roller bearings easily and efficiently.

  • Special designed for the major bearing manufacturers.

  • The simple, efficient and easy operation provided with the pulling force 100 ton.

  • Single unit with portable design for easy, convenient positioning and saving storage space much.

  • The basic equipment in most wheel shops
Download Flyer Send us inquiry

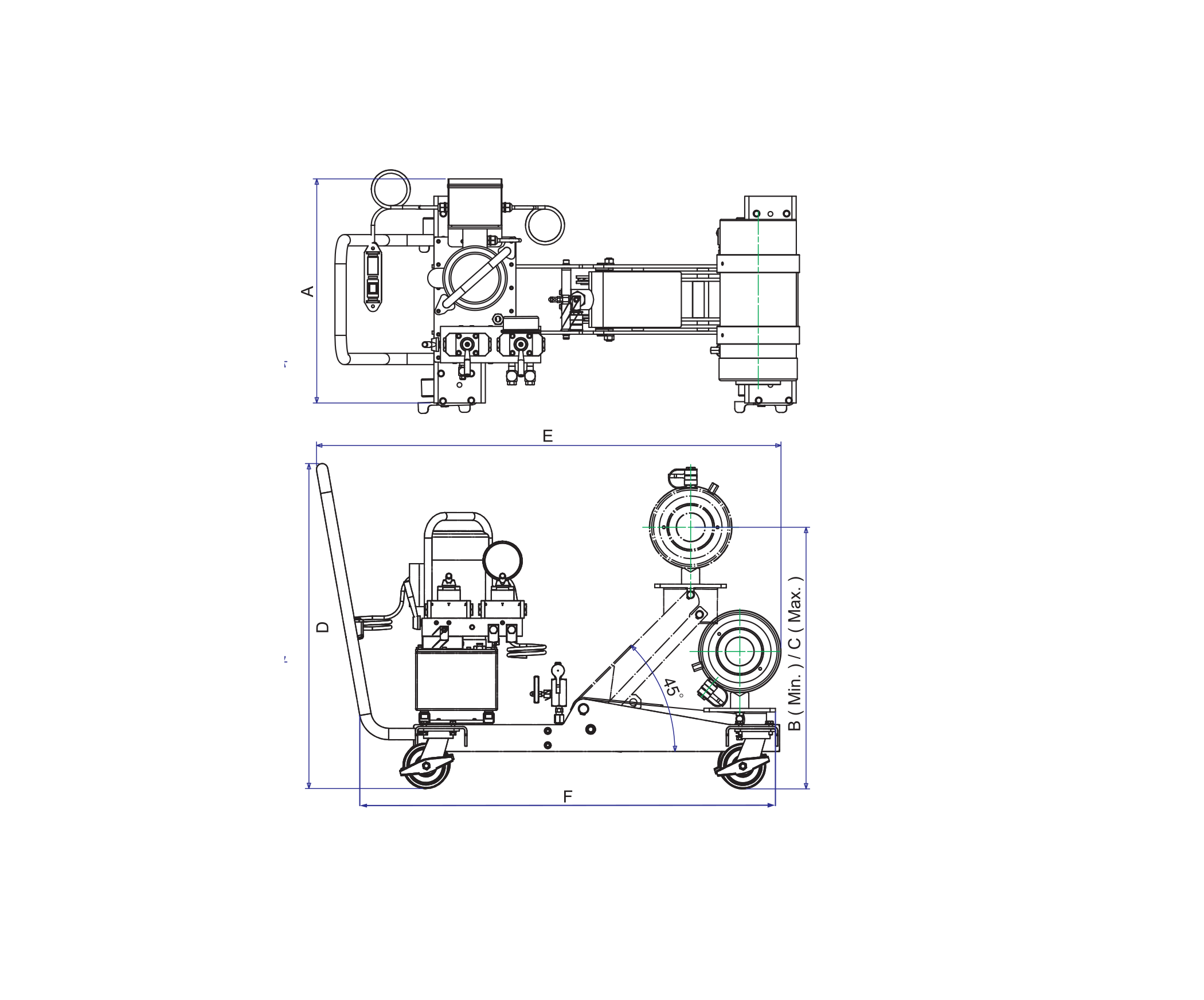

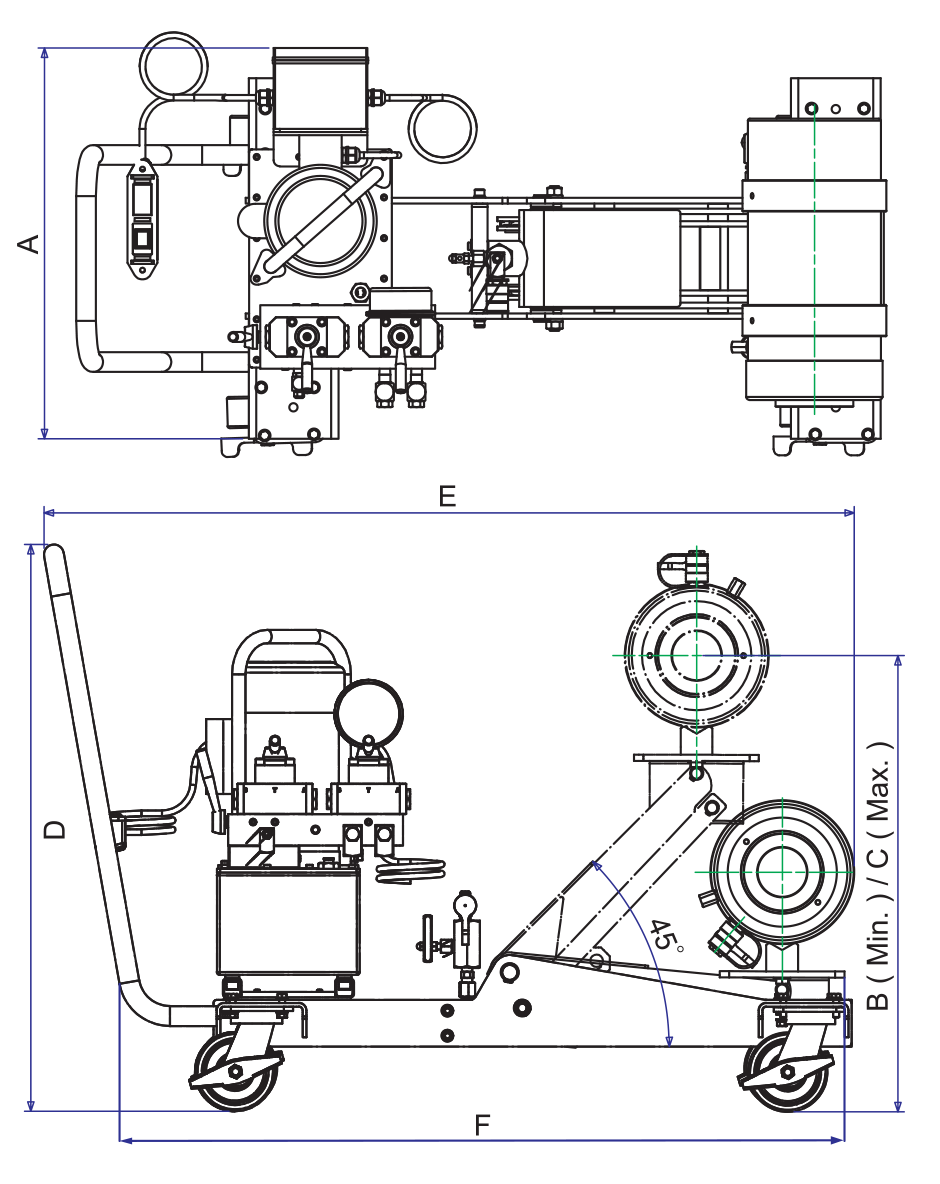

Technical Specifications:

Model

Stroke

mm

Capacity

ton

Hydraulic Pump

A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

Weight

Kgs
- - Pulling Pushing Model Type Power Current - - - - - - -
MDTU100TE 254 100 68 EP9500D Electric 1.12KW

110V/220V

50/60Hz

 627 384 731 909 1299 1175 410

Universal railroad axle journal roller bearing push puller

We would be able to provide the basic tool in the most wheel shops for dismantling and installing the axle journal roller bearing. With this proper equipment and know-how, you can save the maximum of time and effort on maintenance for sure.

Form class B through GG, each unit service a full line of bearing with rotating end caps. simply remove the end caps, slip the pulling shoe between the bearings and the wheel within seconds under the pulling force of 100 ton easily.

The pulling shoe and installing tube ensure the most convenient and fat installation.100 ton hydraulic cylinder is working under 10,000 psi.
