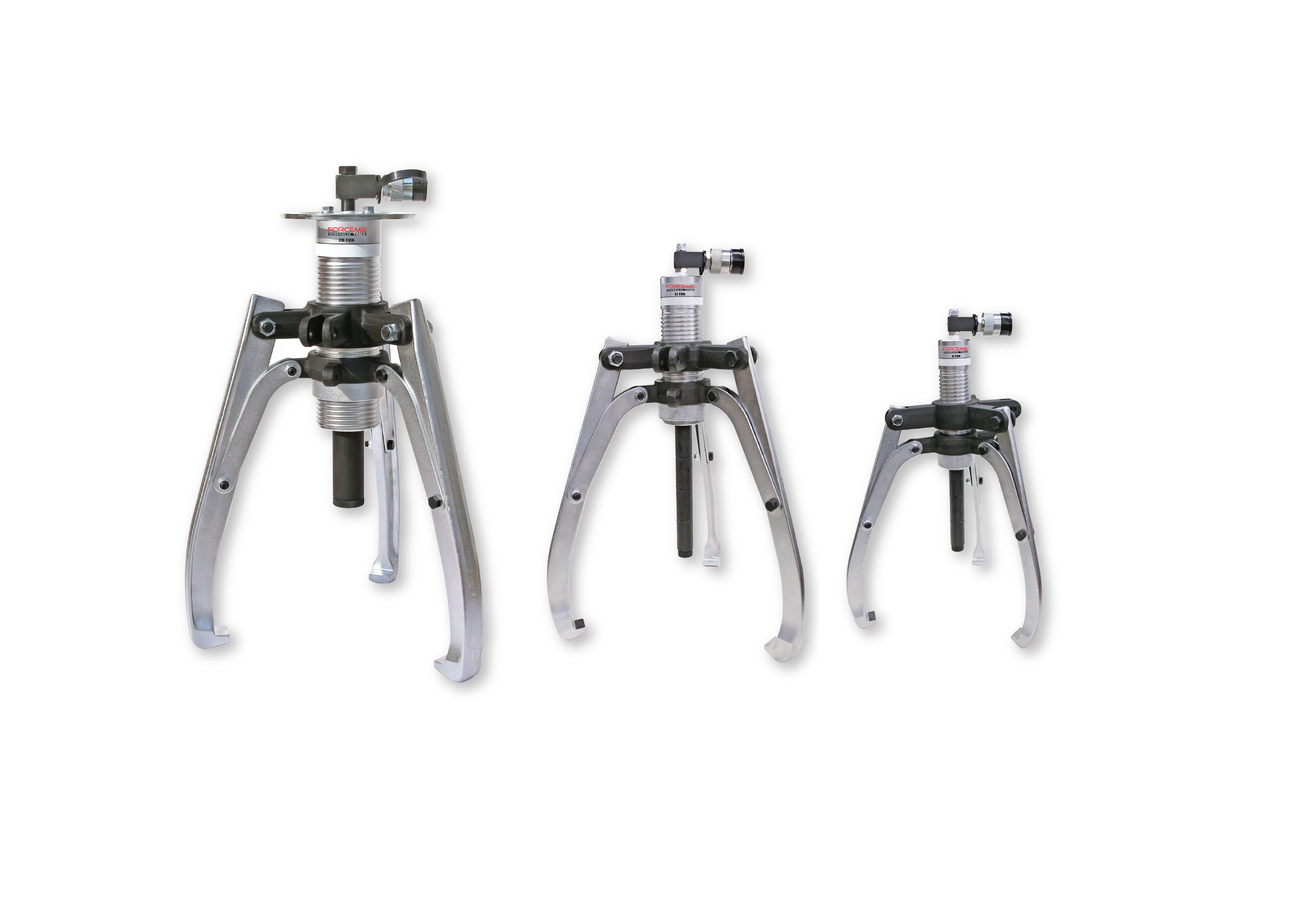

Hand-Held Hydraulic Puller, SW Series

2/3 Synchronized Arms , Separate Hand Pump

Capacity 4 - 30 tons

Max. Spreads 43 - 620 mm

Max. Working Pressure 700 Bar
FEATURES:
  • Self-centering and fast-acting jaws are absolutely user-friendly for operating
  • 360˚ rotary socket can be operated in all direction.
  • The extension rods can be used for extra reach when necessary
  • The built in safety valve can prevent the puller being overloaded
  • The convertible 2/3 way hydraulic puller provides the best can cost saving choice for the users.
  • These type of pullers will require Hydraulic pumps to operate. for different packages with different type of pumps refer to Package Selection.
  • In order to connect the puller to a pump, Hydraulic accessories will be required for which refer to Parts and Accessories.
Download Flyer Send us inquiry

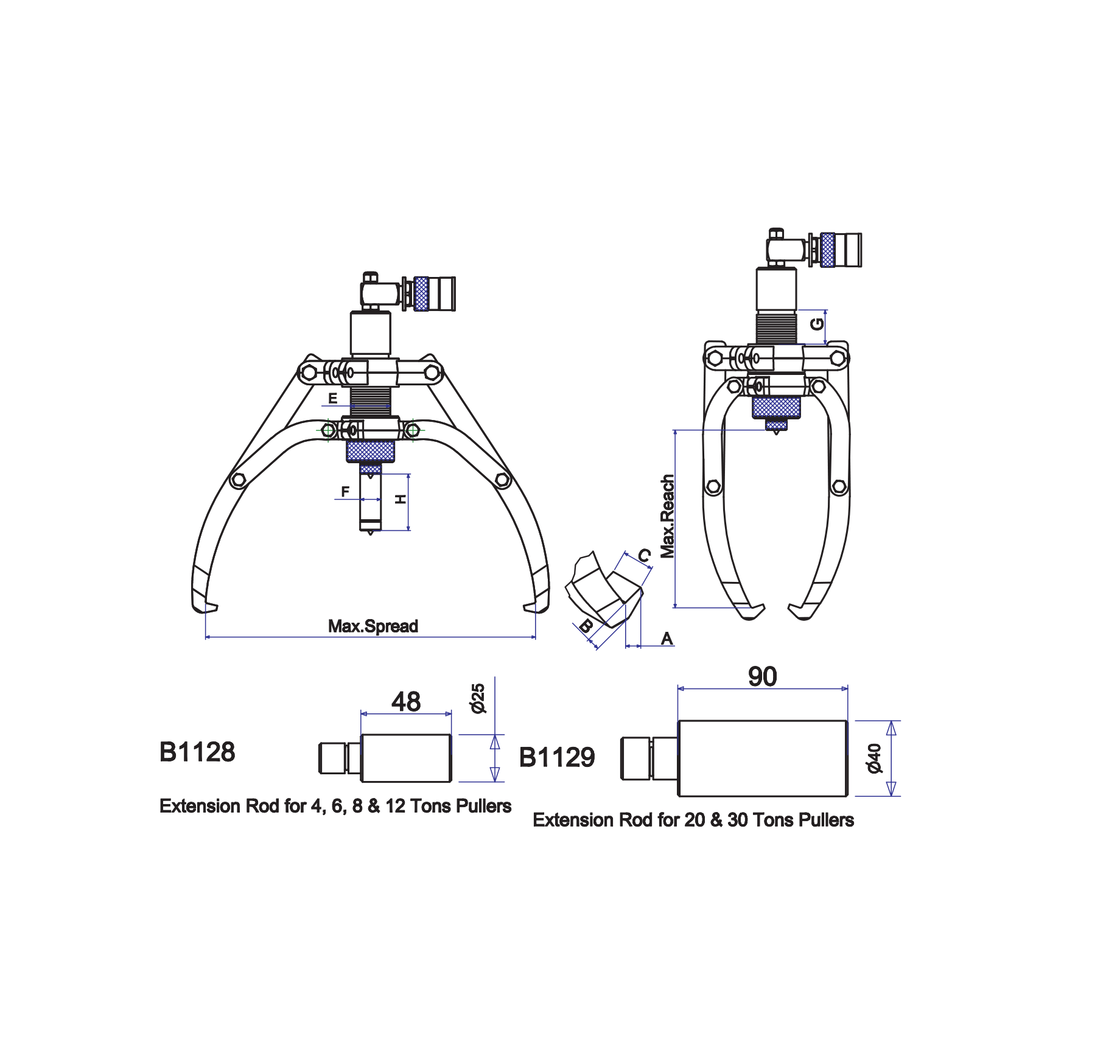

Technical Specifications:

Model

Capacity

Ton

Spread

mm

Reach

mm

Stroke

mm

Pump Tip

mm

Jaw Tip

mm

Weight

Kg
- - Min Max Min Max H E F G A B C -
HP0412SW 4 43 315 150 190 60 42 22 40 13 10 22 7.4
HP0818SW 8 95 460 225 280 85 50 25 70 13 13 27.5 14
HP1220SW 12 100 515 240 300 85 60 28 70 15 16.5 29 17
HP2020SW 20 110 520 250 325 111 80 40 62 20 27 33 36.7
HP3024SW 30 120 620 330 415 111 98 50 85 20 27 38 56.5

Parts and Accessories:

The list of parts, spare parts and accessories used with hydraulic pullers SW series will be as bellow:

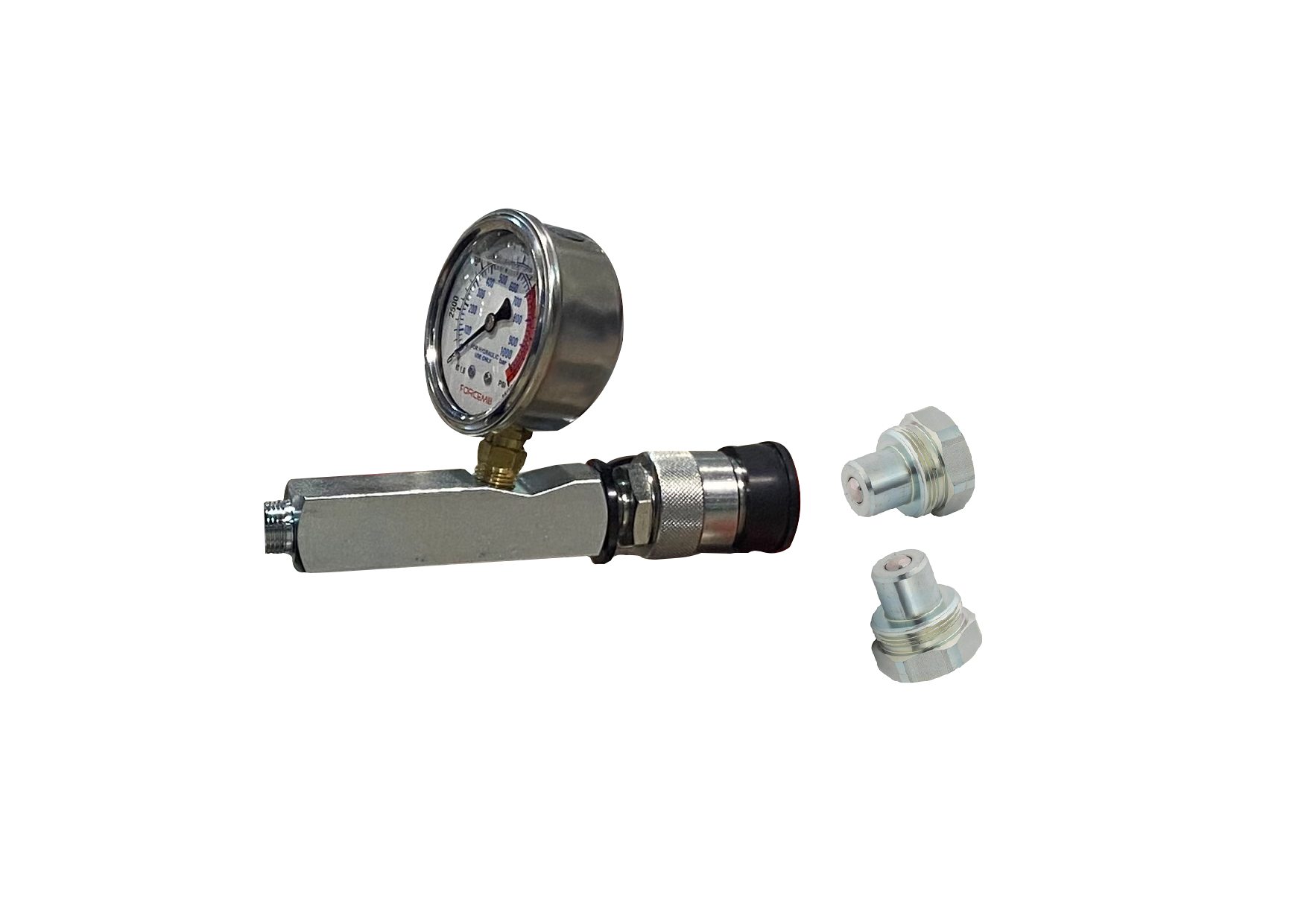

 Connection set

Model CS60

All necessary hydraulic components to connect a single-Acting cylinder to a Pump including:

  • 1 pc of T-connector model E1745

  • 1 pc of pressure gauge Dia. 60 mm, 1000 Bar model M0039

  • 1 pc of Coupler model CP331B

  • 2 pcs of nipples for two end of the hose model CP332B

 Connection set

Model CS100

All necessary hydraulic components to connect a single-Acting cylinder to the Pump including:

  • 1 pc of T-connector model E1745

  • 1 pc of pressure gauge Dia. 100 mm, 1000 Bar model M0136

  • 1 pc of Coupler model CP331B

  • 2 pcs of nipples for two end of the hose model CP332B

Swiveling connector

Model BG9705

 Swiveling 360 degree used to connect hose to the Puller safely and without twisting the hose. Pre-installed on all the Pullers of SW series.

Hydraulic hose

Model PHS336*

Hydraulic Hose working Pressure 700 ba /10,000 psi Length 1.8 m, 3/4"-NPT

*for different length of the hose visit this page

Packages Selection

Hydraulic Pullers SW series can be used with different type of pumps so that different packages can be considered. Various possible packages is shown bellow for convenient selection but it is not limited to these and others arrangements can be made.

Hydraulic puller 4 ton package with hand pump

Model No HP0412SW/H1.8*

Package components:

  1. 1 pc of hyd. puller model HP0412SW

  2. 1 pc of hand pump model SSH350S

  3. 1 pc of hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of the hose, replace the last digit with the required length

Hydraulic puller 8 ton package with hand pump

Model No HP0818SW/H1.8*

Package components:

  1. 1 pc of hyd. puller model HP0818SW

  2. 1 pc of hand pump model SSH350S

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 12 ton package with hand pump

Model No HP1220SW/H1.8*

Package components:

  1. 1 pc of hyd. puller model HP1220SW

  2. 1 pc of hand pump model SSH550S

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 12 ton package with Foot Pump

Model No HP1220SW/F1.8*

Package components:

  1. 1 pc of hyd. puller model HP1220SW

  2. 1 pc of foot pump model SF700

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 20 ton package with Hand Pump

Model No HP2020SW/H1.8*

Package components:

  1. 1 pc of hyd. puller model HP2020SW

  2. 1 pc of hand pump model AH1620

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 20 ton package with Pneumatic Foot Pump

Model No HP2020SW/P1.8*

Package components:

  1. 1 pc of hyd. puller model HP2020SW

  2. 1 pc of Pneumatic foot pump model AF1300S

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 30 ton package with Hand Pump

Model No HP3024SW/H1.8*

Package components:

  1. 1 pc of hyd. puller model HP3024SW

  2. 1 pc of hand pump model AH1620

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 30 ton package with Pneumatic Foot Pump

Model No HP3024SW/P1.8*

Package components:

  1. 1 pc of hyd. puller model HP3024SW

  2. 1 pc of hand pump model AF1300S

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length

Hydraulic puller 30 ton package with Electric Pump

Model No HP3024SW/E1.8*

Package components:

  1. 1 pc of hyd. puller model HP3024SW

  2. 1 pc of hand pump model EP2400S

  3. 1 pc of hyd. hose 1.8 m model PHS336

  4. 1 set of hyd. connections model CS60

*for different length of Hose replace the last digit with the required length
