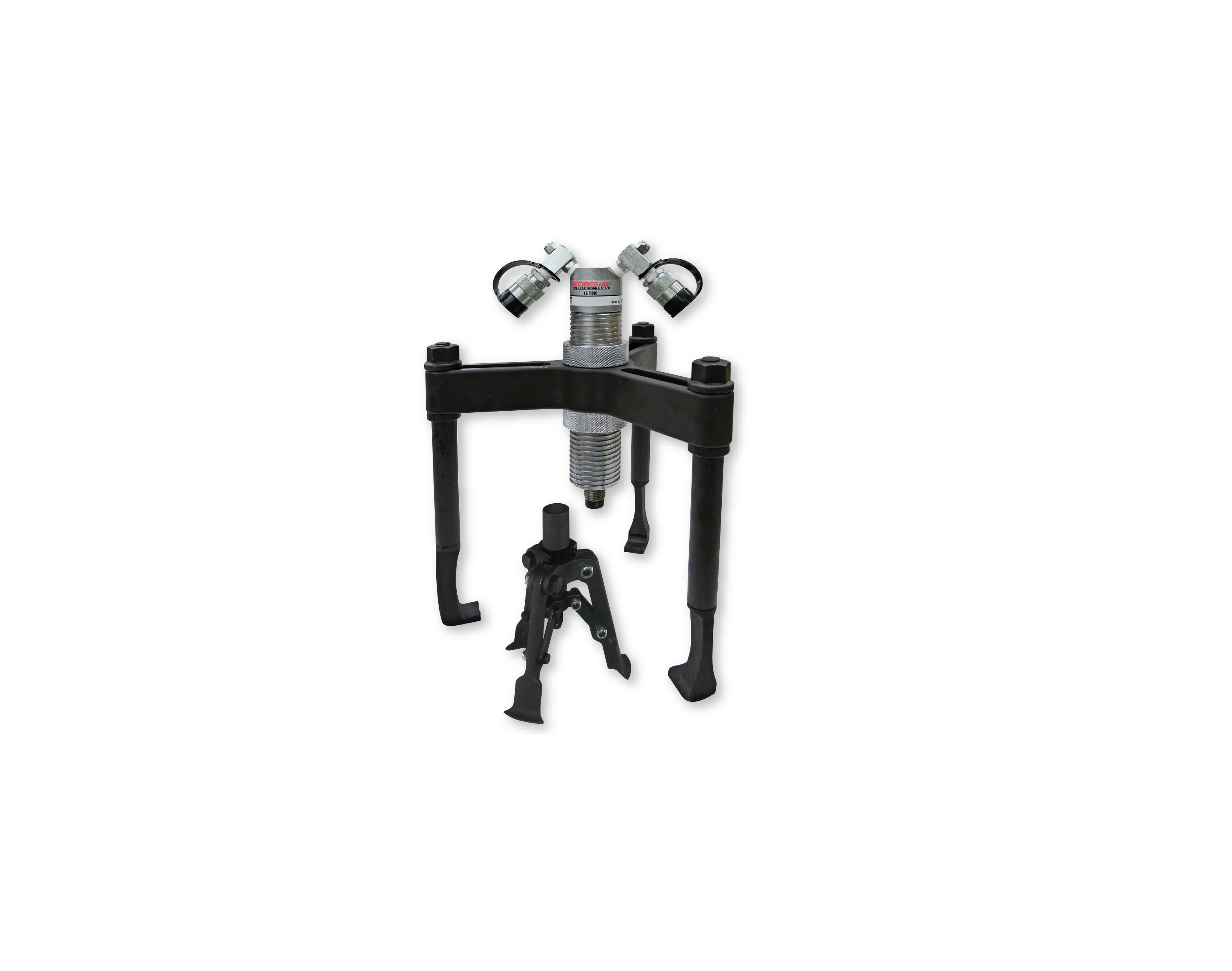

Hydraulic Push-Puller

Model HPP1208W

Max. Pulling Capacity 12 tons

Max. Spread 300 mm

FEATURES:

• Unique double acting cylinder to provide pushing and pulling force

• Unique jaw design for installing and outer ring pulling without removing and changing

• Three jaws structure provides the even and constant force whenever for installing, outer ring pulling and inner pulling.

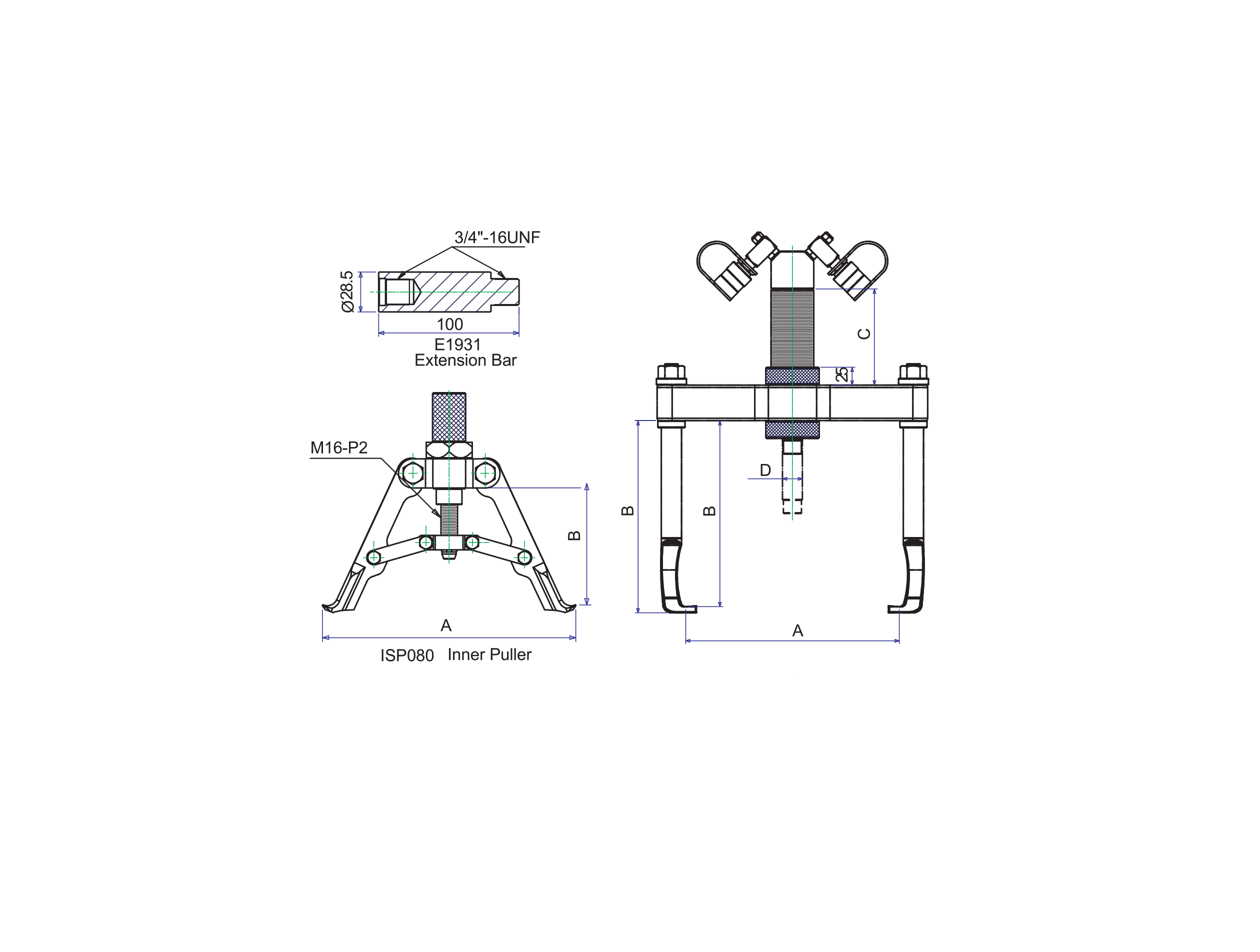

• The extension bars can be used where necessary for reach.

• Self-centering design on inner puller provides the even force and prevent the jaws from sliding off during operating

• The built in safety valve prevents the user being harmed and work object being damage by rated pressure which can not be reset of adjusted.

• Most parts are forged SCM440 alloy steel, creating a durable and safe product

• The three in one design reduce tool-reset time and duration of operation

• This push puller is ideal for installing and dismantling a wide variety of press-fit parts, including bushings, wheels, bearings, gears and pulleys
