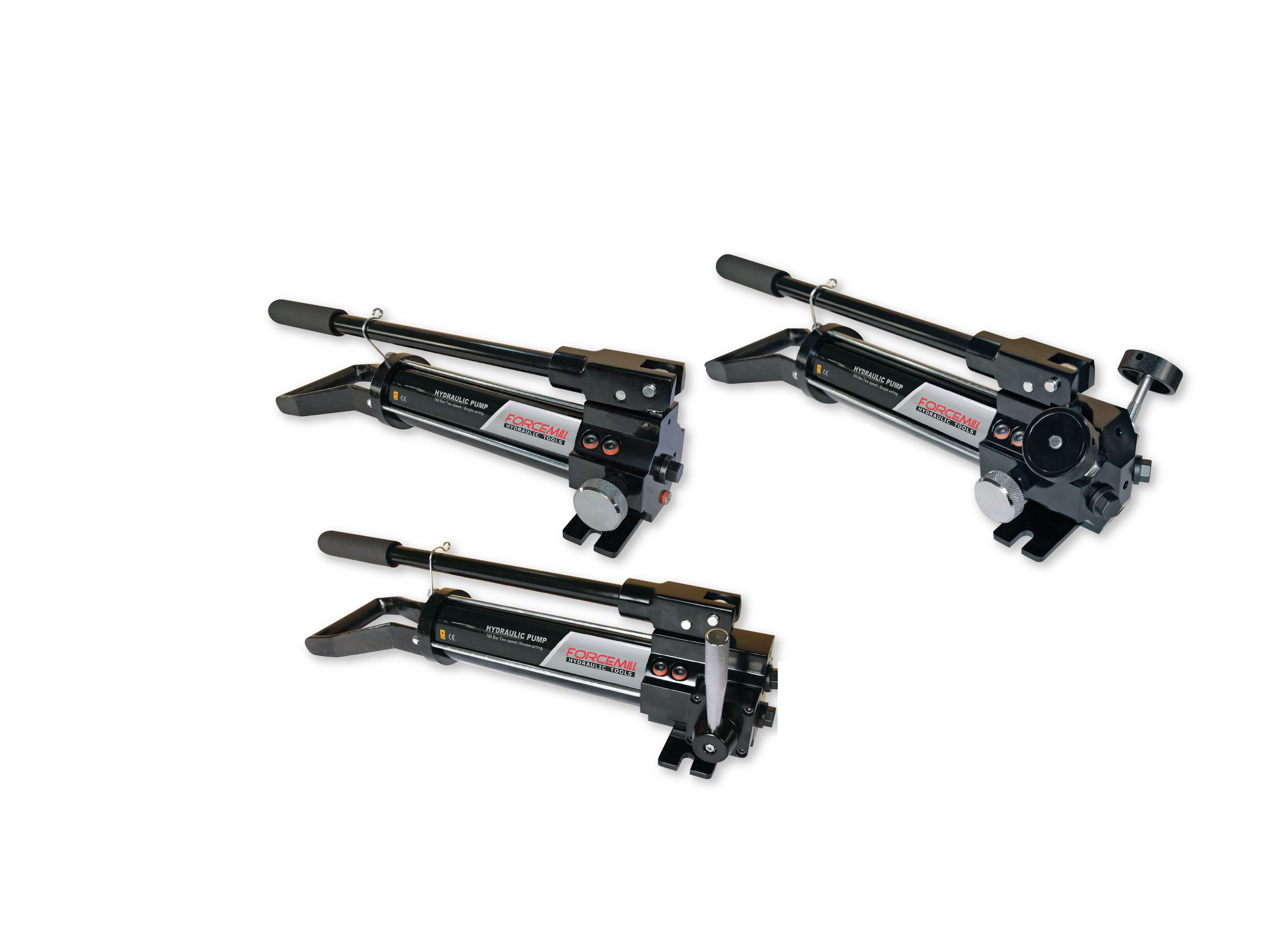

Special Hand Pump, SSH series
Max. Pressure 700 bar/10,000 psi
Usable Oil Capacity 350 - 1000 cc
Operated at all angels and Sub-sea operation
FEATURES:
Sealed Oil Reservoir
Dual-speed models
Could be operated in any directions
Large 3/8" pressure port for max. flow
Max. working pressure 700 bar
Special design with aluminum alloy construction as much light weight is ideally for easy portability and maneuvering.
The sealed oil reservoir design allows the hand pumps to be operated at all angels without the risk of air contamination and oil spills.
The best optional hand pumps allow for sub-sea operation.
Unique design of triangle hand-held base is easy to carry & operate.
S: Single-port hand pump is used for one single-acting cylinder
T: Twin-port hand pump is used for two single-acting cylinders simultaneously
D: Double-acting hand pump is used for one double-acting cylinder
Technical Specifications:
| Model |
Pressure Bar |
Usable oil Cap cc |
Oil volume per stroke cc |
Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Oil Port Thread |
Length mm |
Length mm |
Length mm |
Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 1st stage | 2nd stage | - | 1st stage | 2nd stage | A | B | C | D | E | F | G | H | J | K | - |
| SSH350S | 20 | 700 | 350 | 5.8 | 0.9 | 374 | 340 | 140 | 140 | 338.5 | 50 | 3/8"NPT | 125 | - | - | 4.4 |
| SSH350T | 421 | 363.5 | - | - | 6.2 | |||||||||||
| SSH350D | 411 | 358.5 | 171 | 185 | 5.3 | |||||||||||
| SSH550S | 20 | 700 | 550 | 5.8 | 0.9 | 494 | 463 | 140 | 140 | 458.5 | 50 | 3/8"NPT | 125 | - | - | 6 |
| SSH550T | 541 | 483.5 | - | - | 7.1 | |||||||||||
| SSH550D | 531 | 478.5 | 171 | 185 | 5.5 | |||||||||||
| SSH1000S | 20 | 700 | 1000 | 5.8 | 0.9 | 694 | 568 | 140 | 140 | 658.5 | 50 | 3/8"NPT | 125 | - | - | 6.6 |
| SSH1000T | 741 | 683.5 | - | - | 8.3 | |||||||||||
| SSH1000D | 731 | 678.5 | 171 | 185 | 7.7 | |||||||||||
