Aluminum Hand Pump, AH series
Max. pressure 700 bar/10,000 psi
Usable Oil Capacity 350 - 1620 cc
Single acting and Double acting
FEATURES:
Dual speed models
Large 3/8" pressure port for maximum flow
Rugged construction and light handle efforts.
Aluminum Alloy construction and handy release knob with anti-losing mechanism are truly suitable to industrial requirements and your daily works.
The light weight design is ideally for easy operation and portability.
Double action design on AH1620D is ideal for double acting cylinders, no extra control valve and adapters are requested.
Technical Specifications:
| Model |
Pressure Bar |
Reservoir Oil Cap. cm3 |
Usable oil Cap cm3 |
Oil volume per stroke cc |

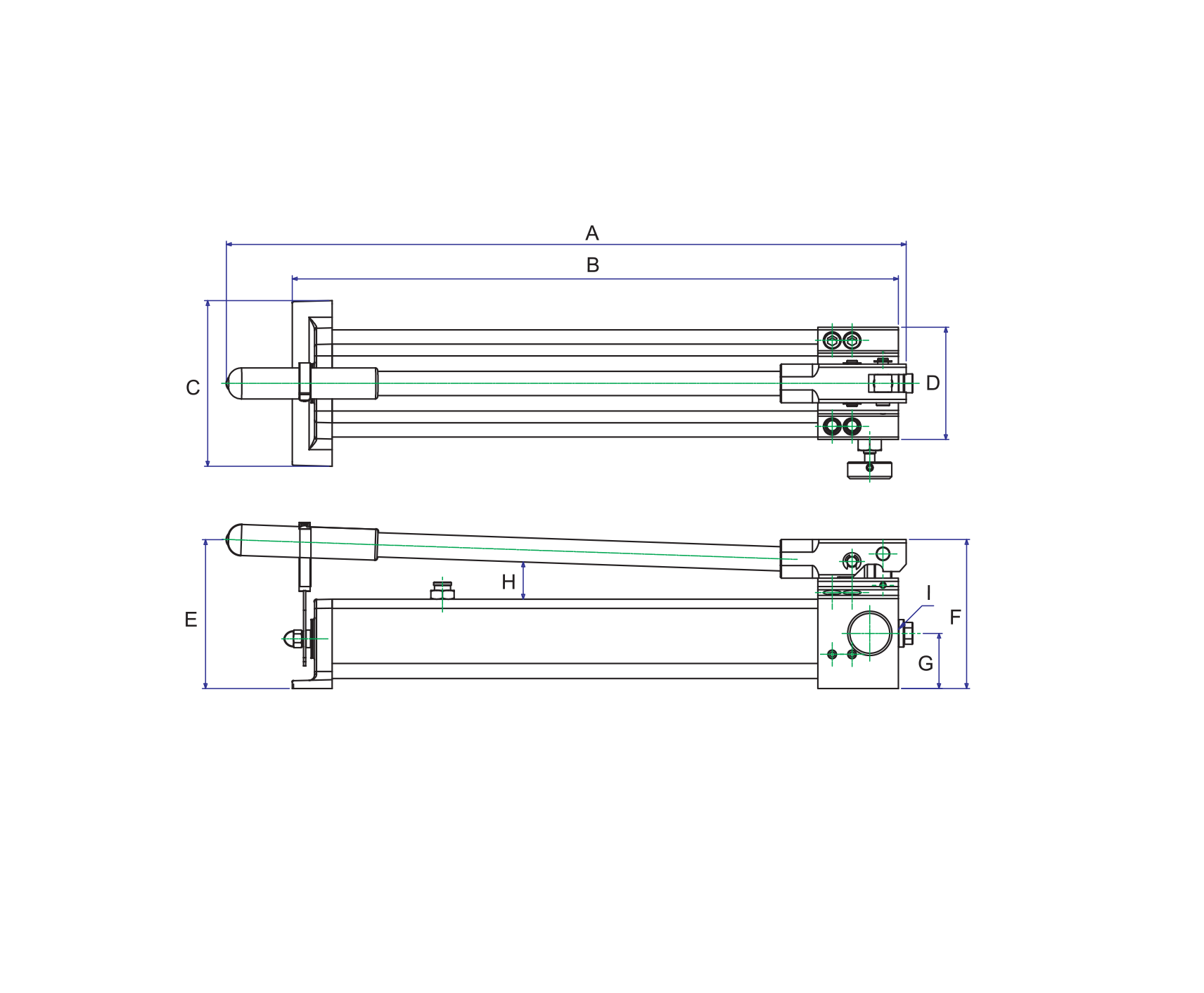

Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Length mm |
Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 1st stage | 2nd stage | - | - | 1st stage | 2nd stage | A | B | C | D | E | F | G | H | I | - |
| AH350 | 20 | 700 | 500 | 350 | 12.9 | 1.65 | 391 | 361 | 110 | 77 | 140 | 127 | 42.5 | 37 | 3/8"NPT | 2.3 |
| AH750 | 20 | 700 | 1000 | 750 | 12.9 | 1.65 | 542 | 513 | 110 | 77 | 130 | 127 | 42.5 | 3.5 | ||
| AH1620 | 20 | 700 | 2000 | 1620 | 12.9 | 2.3 | 623 | 556 | 150 | 102 | 135 | 135 | 50 | 6 | ||
| AH1620D | 20 | 700 | 2000 | 1620 | 12.9 | 2.3 | 623 | 556 | 150 | 102 | 135 | 135 | 24/37 | 7 | ||
