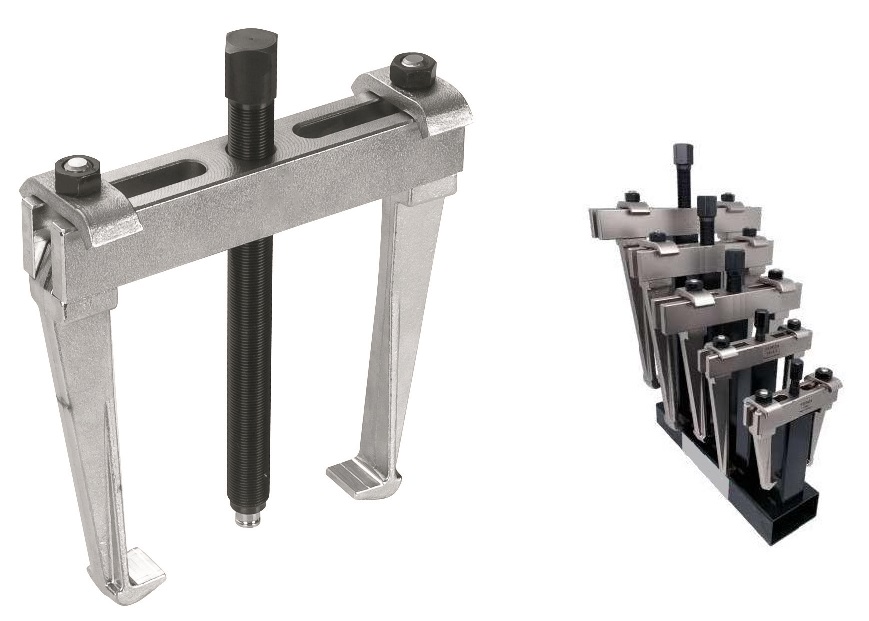

Mechanical 2-Jaws Puller, MR series
2 sliding Straight Jaws
Spread 20 - 395 mm
Max. Reach 390 mm
FEATURES:
Two-jaw rigid puller for external and, occasionally, internal applications.
One-piece forged jaws and push-puller body.
More rigidity in extraction: force is applied directly to the body.
Faster assembly.
Hexagon head spindle for a better grip with a wrench.
Big pullers include anti-grid bronze nut.
Technical Specifications:
| Model |
Spread mm |
Spread mm |
Reach mm |
Spindle |
Hexagon Size |
Weight |
|
|---|---|---|---|---|---|---|---|
| - | Min | Max | Max |
Thread size |
Length mm | mm | mm |
| MR1002L | 20 | 80 | 135 | M12 | 165 | 14 | 1.2 |
| MR1010A | 30 | 195 | 160 | M20 | 255 | 24 | 3.6 |
| MR1010L | 30 | 145 | 220 | M20 | 255 | 24 | 4 |
| MR1015HX | 45 | 205 | 220 | M20 | 319 | 24 | 4.4 |
| MR1020 | 75 | 260 | 260 | M27 | 377 | 28 | 10.5 |
| MR1020LHX | 75 | 245 | 390 | M27 | 377 | 28 | 13.5 |
| MR1020A | 125 | 395 | 260 | M27 | 377 | 28 | 13 |
